Hakapontoon - Laatuponttonit

High quality pontoons

Innovative and environmentally friendly pontoon solutions

What is it?

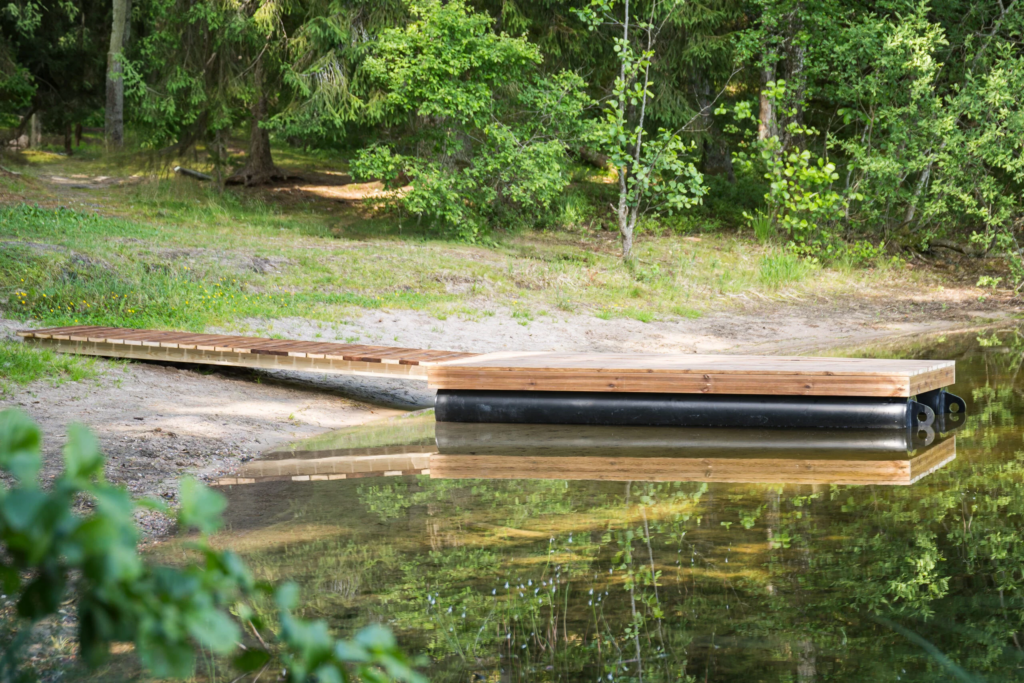

A pontoon is a cylindrical floating device made of a HDPE pipe. It is designed to keep various equipment, installations or floating bridges afloat.

Hara sadam

Made of

HAKA Plast pontoons are made of HDPE (high-density polyethylene) material. HDPE material is elastic and highly wear resistant. Pontoons are environmentally friendly, the HDPE material is 100% recyclable and reusable.

Recycled HDPE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

100% recyclable

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Corrosion free

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Long lifetime

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Resilient

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lightweight

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Sustainable

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Recycled HDPE

100% recyclable

Corrosion free

Long lifetime

Resilient

Lightweight

Sustainable

What is it used for?

Käsmu sadam

Floating harbours

Floating bridges

Paekalda puhkekeskus

Floating rafts

Paekalda puhkekeskus

Floating saunas

Bog trails

Calculate your own pontoon needs by using calculator below

Pontoon's length (m)

Top load (kg)

⌀ 315 pcs

⌀ 400 pcs

⌀ 500 pcs

⌀ 560 pcs

⌀ 630 pcs

PE pontoon weight - Both ends 90°

Pontoon Ø (mm)	End PE plate thickness (mm)	Pontoon length
		L = 3m	L = 4m	L = 5m	L = 6m	L = 12m
315	6 mm	24 kg	32 kg	39 kg	47 kg	93 kg
400	8 mm	41 kg	53 kg	66 kg	78 kg	153 kg
500	10 mm	65 kg	85 kg	104 kg	124 kg	240 kg
560	12 mm	84 kg	108 kg	132 kg	157 kg	303 kg
630	15 mm	106 kg	136 kg	167 kg	198 kg	383 kg

PE pontoon weight - One end 45° and the other end 90°

Pontoon Ø (mm)	End PE plate thickness (mm)	Pontoon length
		L = 3m	L = 4m	L = 5m	L = 6m	L = 12m
315	6 / 8 mm	25 kg	33 kg	40 kg	48 kg	94 kg
400	8 / 10 mm	43 kg	55 kg	68 kg	80 kg	155 kg
500	10 / 12 mm	68 kg	87 kg	106 kg	126 kg	242 kg
560	12 / 15 mm	87 kg	111 kg	135 kg	160 kg	307 kg
630	15 / 15 mm	108 kg	140 kg	170 kg	201 kg	386 kg

PE pontoon weight - Both ends 45°

Pontoon Ø (mm)	End PE plate thickness (mm)	Pontoon length
		L = 3m	L = 4m	L = 5m	L = 6m	L = 12m
315	8 mm	26 kg	34 kg	41 kg	49 kg	95 kg
400	10 mm	44 kg	57 kg	69 kg	82 kg	157 kg
500	12 mm	70 kg	89 kg	109 kg	128 kg	244 kg
560	15 mm	90 kg	115 kg	139 kg	134 kg	310 kg
630	15 mm	111 kg	142 kg	172 kg	204 kg	388 kg

Maximum load capacity 75%

Recommended load capacity 50%

How to use?

It is not recommended to drag or push the pontoons along the ground and to use appropriate lifting equipment when moving them.
Pontoons must be stored on a flat and level surface.
Do not store pontoons on top of fixing ears!
If possible, pontoons should be kept out of direct sunlight before installation (possible deformation).
When pontoons are installed side by side, the pontoons must be at least 10mm apart.
When installing the pontoon to the frame, make sure that the fixing ears are not tightly tightened against the frame. A small gap must be left to allow the polyethylene to expand and contract freely without damaging the pontoon.
It is recommended that pontoons are removed from the water for the winter. This is particularly important when pontoons are located in moving water. Moving ice can break up the pontoon.

Special solutions

HAKA Plast has over 20 years of experience in the production of plastic pipes and pipe solutions. The main areas of operation are the Nordic and Baltic countries.

More information on the website HERE
